Our Products

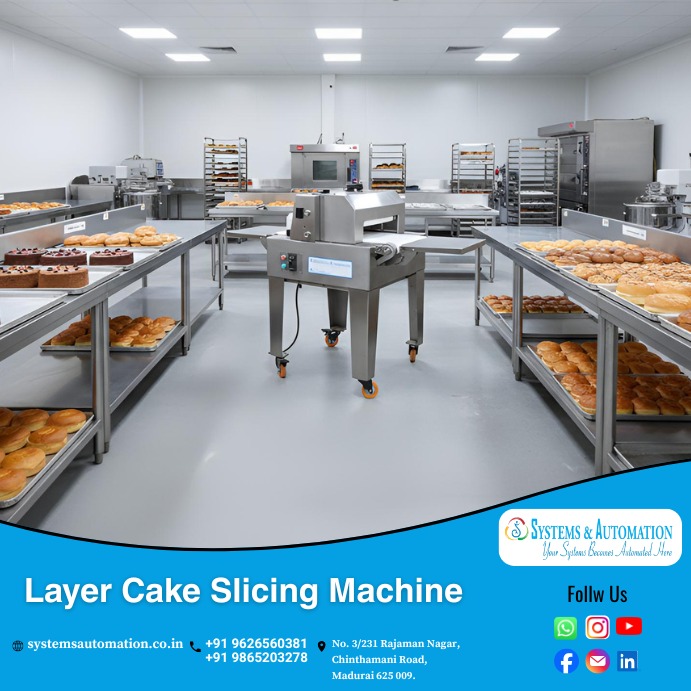

LCM - 01 Horizontal Cake Slicing Machine
Capacity :
1. 300 PCS / Hour ( Base on Dia 300mm )
2. Speed 3000 Hamburgers/Hour
3. Number of Slice : 6 Slices Max
4. Increment of cutting Step 5 mm x 24 pitch
5. Effective Cake Size in Round – 400 mm Dia x 100 H mm
6. Effective Cake Size in Rectangle – 600L x 400W x100H mm
Specification :
1. Power Supply: 3 Phase - 430 V, 50 Hz ( Single Phase with extra cost )
2. Power Consumption: 0.6 Kw
3. Machine Size: 1050 L*800 W*1200 Hmm
4. Weight: 180 Kg

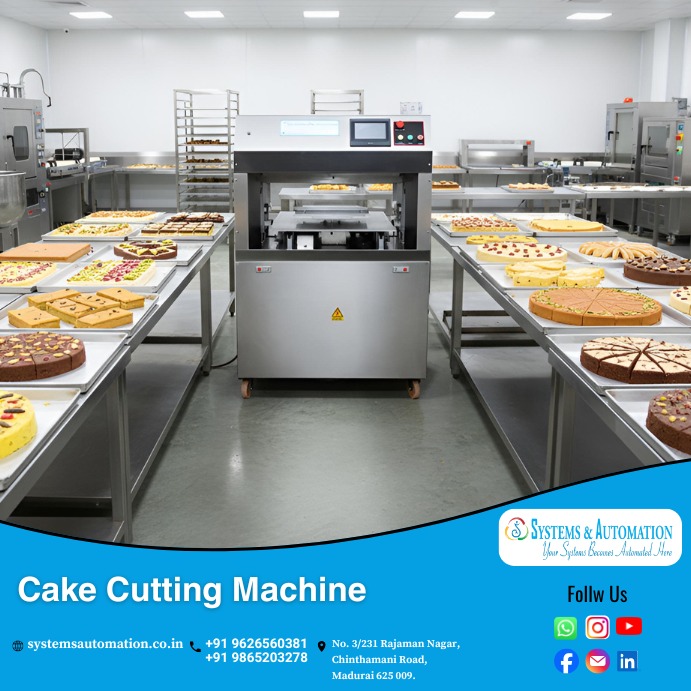

CCM-01 Multi Size Cake Slicing Machine
Capacity :
1. Cutting Shapes : Square, Rectangular, Triangle, Diamond, Half
Diamond, Round Into pieces and Polygon
2. Cutting Speed : Min 20 cut / min, Max 50 cut / m
3. Table Speed : Min 3 M / min, Max 25 M / min
4. Steps of Cutting : Rapid, Cream Cutting and Cake Cutting
Safety Features :
1. Protected with hand safety guard and alarm
2. Tary safety and alarm
Specification :
1. Power Supply : Single Phase - 240 V / 50Hz
2. Power Consumption : 1 Kw
3. Machine Size : 1200 L*1110 W*1500 H mm
4. Round Cake Size : Maximum 400 mm Dia
5. Table Size : 600 mm x 400 mm

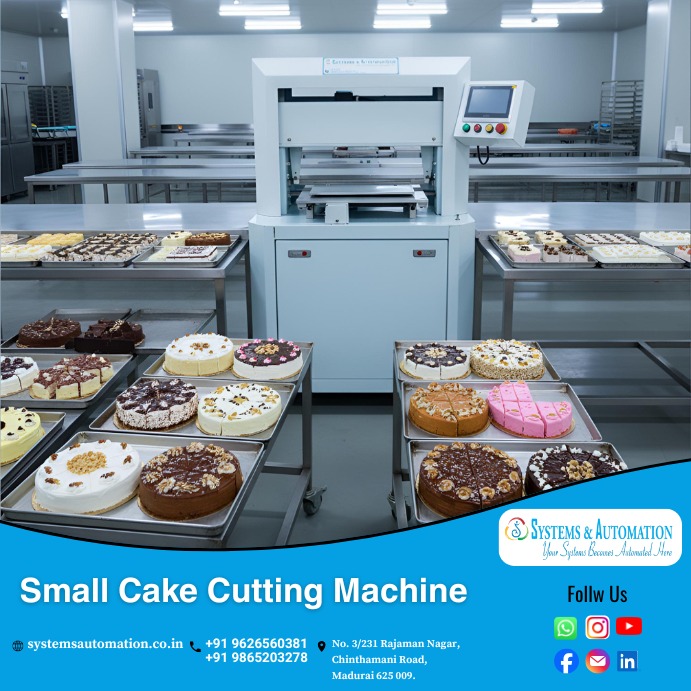

SCCM-01 Small cake cutting Machine
Capacity :
1. Cutting Shapes : Square, Rectangular, Round Into pieces
2. Cutting Speed : Min 20 cut / min, Max 50 cut / min
3. Table Speed : Min 3 M / min, Max 25 M / min
Machine Features :
1. Material : Food contact parts are fully SS 304
2. Blade : Non corrosive coated blades
3. Controls : Reliable PLC, HMI and servo system
4. Axis : Linear axis and rotary axis are servo,
cutter and wiper are pneumatic.
5. Noise : No
6. Maintenance : Easy and Less
7. Speed : Good Enough
Specification :
1. Power Supply : Single Phase - 240 V / 50Hz
2. Power Consumption : 1 Kw
3. Machine Size : 800 L*800 W*1400 H mm
4. Round Cake Size : Round Max 400 x 400 mm Square Max 400 x 400 mm
5. Table Size : 400 mm (16”) x 400 mm (16”)

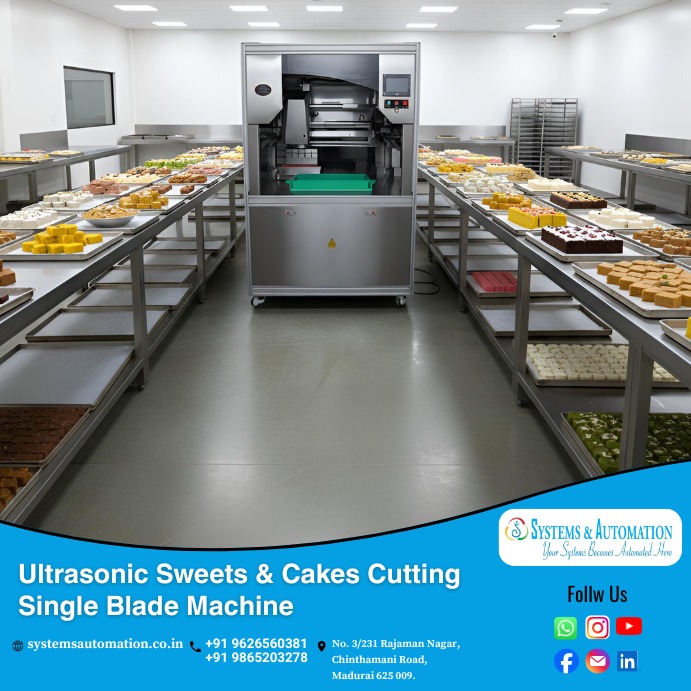

UUCM-01 Ultrasonic sweet & confectionery cutting machine
Capacity :
1. Power Supply : Single Phase -240 V / 50 Hz
2. Max Power Consumption : 1.5 Kw
3. Machine Size : 1300 L*1250 W*2000 H mm
4. Round Cake Size : Maximum 400 mm Dia
5. Table Size : Square , Rectangle, Triangle and
Diamond 600 mm x 400 mm
6. Cutting Speed : Min 10 cut / min, Max 60 cut / min
7. Carriage Speed : Min 3 M / min, Max 25 M / min
Safety Features :
1. Protected with hand safety guard and alarm
2. Pneumatic pressure switch safety and alarm
3. Covered tray safety and alarm
4. Metal tray safety and alarm
5. Open tray safety and alarm
6. Ultrasonic over temperature safety and alarm
7. Ultrasonic error safety and alarm

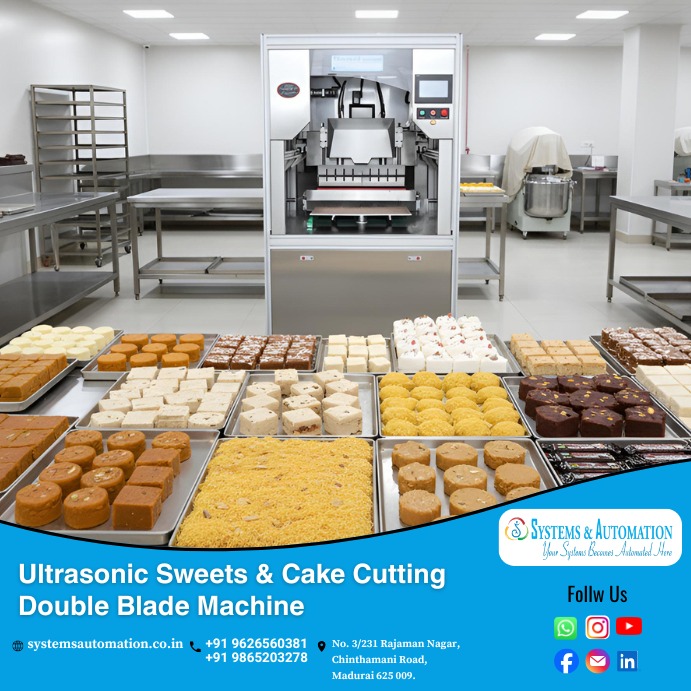

UUCM - 02 Ultrasonic sweet & confectionery cutting machine
Capacity :
1. Power Supply : Single Phase - 240 V / 50Hz
2. Max Power Consumption : 2 Kw
3. Machine Size : 1300 L*1200 W*2000 H mm
4. Round Cake Size : Maximum 400 mm Dia
5. Table Size : Square, Rectangle, Triangle and
Diamond 600 mm x 400 mm
6. Cutting Speed : Min 10 Cut / min, Max 60 Cut / min
7. Carriage Speed : Min 3 M / min, Max 25 M / min
Safety Features :
1. Protected with hand safety guard and alarm
2. Pneumatic pressure switch safety and alarm
3. Stopper safety and alarm
4. Ultrasonic over temperature safety and alarm
5. Ultrasonic error safety and alarm
